Product features:
1. Low insert loss, High return loss.
2. High strength.
3. Excellent durability.
4. LSZH sheath.
5. Easy to install and maintenance.
6. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
Applications:
1. FTTH.
2. CATV.
3. LAN.
4. Data transmission.
5. Optic fiber test system.

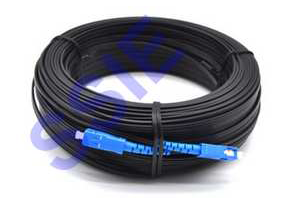

Specifications of Pre-terminated Bow-type Drop Cable:
| Connector type | SC, FC, etc | |
| Fiber type | Single mode | Multi-mode |
| Insert loss | Max 0.3dB | |
| Return loss | With UPC connector≥50dB, With APC connector ≥60dB | |
| Repeatability | ≤0.1dB | |
| Interchangeability | ≤0.2dB | |
| Durability | ≥500 times | |
| Operating temp | -10 ~ +60°C | |
| Storage temp | -30 ~ +75°C | |

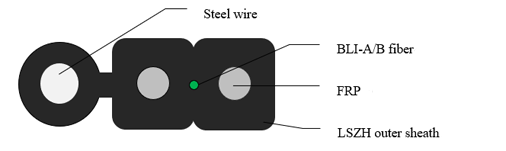

Optical cable structure:
Fiber optical cable parameter:
| Brand of Fiber | Fiberhome | |
| Fiber type | G657 A2 | |
| Cable strength messenger wire | Material | Galvanized steel wire |
| Diameter | 1.2mm | |
| Strength member | Fiber strength member | Steel wire |
| Diameter | 0.45mm | |
| Sheath | Sheath | LSZH |
| Color | Black | |
| Optical cable diameter | Length | 5.2±0.2mm |
| Width | 2.0±0.2mm | |
| Tensile | Short term | 660N |
| Crush | Short term | 1000N |
| Operation Temperature | -10°C / +60°C | |
