Product features:
1. Low insert loss.
2. High mechanical reliability.
3. Environmental Stability.
4. Good exchange performance.
Applications:
1. Optic fiber communication systems.
2. Optic fiber Data Transmission Networks.
3. LAN.
4. CATV.
5. Test & measurement.

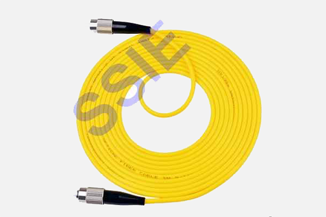

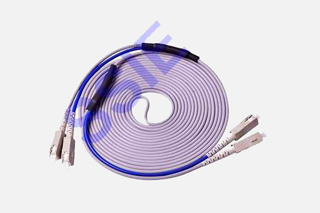

Specifications of Patch cord:
| Connector type | SC, FC, LC, ST, MU, MT-RJ, E2000, DIN | |
| Fiber type | Single mode (1310 & 1550nm) | Multi-mode (850 & 1300nm) |
| Cable diameter | 2.0mm, 3.0mm | 2.0mm, 3.0mm |
| Insert loss | Max 0.3dB | |
| Return loss | With UPC connector≥50dB, With APC connector ≥60dB | |
| Repeatability | ≤0.1dB | |
| Interchangeability | ≤0.2dB | |
| Operating temp | -30 ~ +75°C | |
| Storage temp | -30 ~ +75°C | |
